This page contains the results for the Sentinel IP-SM-GW benchmarks, with both summaries and detailed metrics.

Context for these results are provided by the benchmark scenarios description.

Benchmarks

1000 messages per second, evenly split across the MO-Submission and CS-Delivery call flows.

1102% across 12 cores

Note Maximum theoretical CPU usage is 2400%.

2963MB average heap

Scenario 50th percentile 90th percentile 95th percentile 99th percentile

MO-Submission

4.6ms

23.5ms

51.3ms

153.7ms

CS-Delivery

10.7ms

65.9ms

121.8ms

310.6ms

Detailed metrics

Call Rate

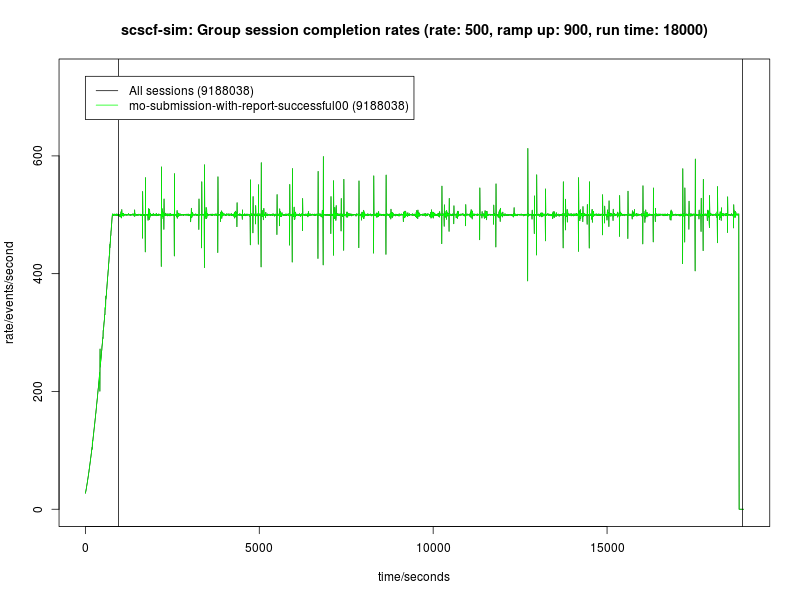

MO-Submission

scscf sim rate

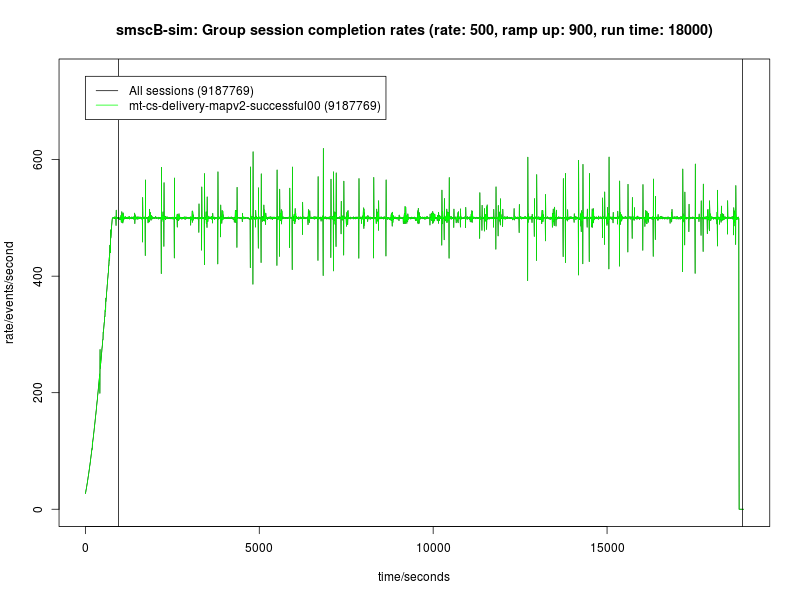

CS-Delivery

smscB sim rate

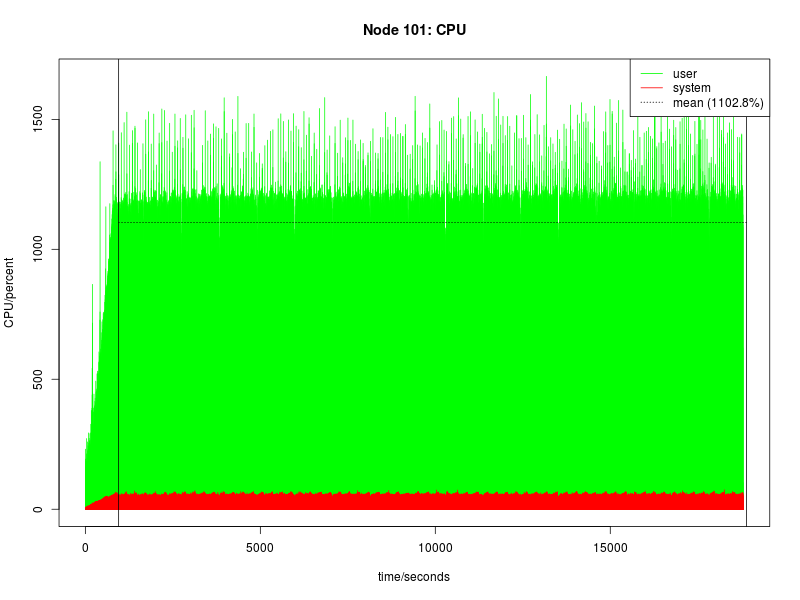

CPU usage

rhino cluster 101 cpu

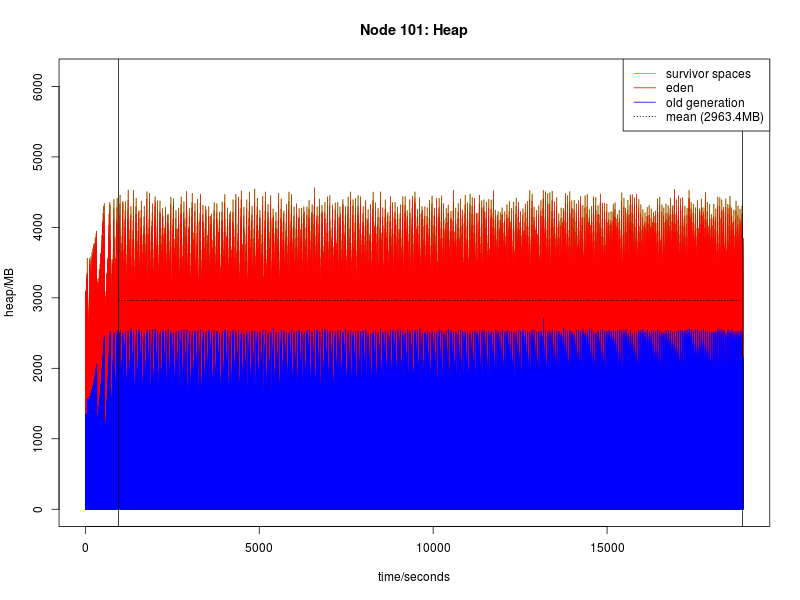

Heap usage

rhino cluster 101 heap

Scenario latencies

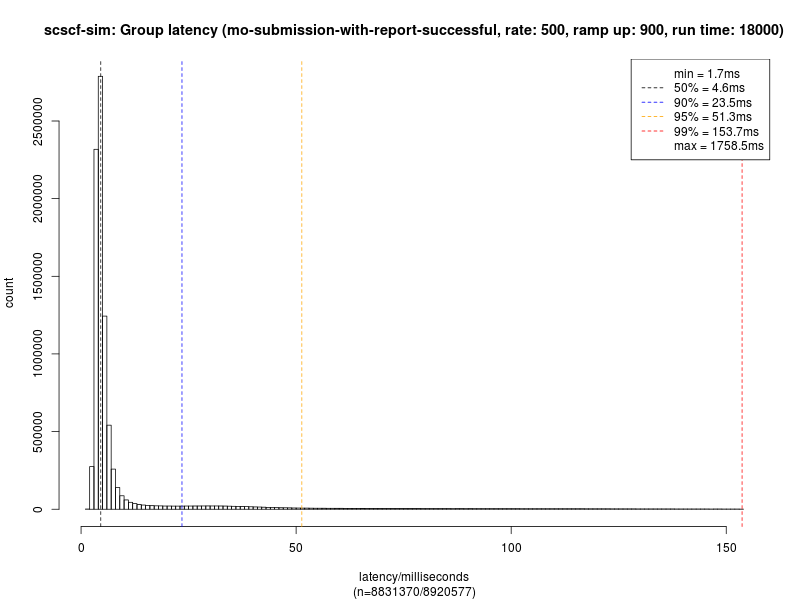

MO-Submission

scscf sim mo submission with report successful latency

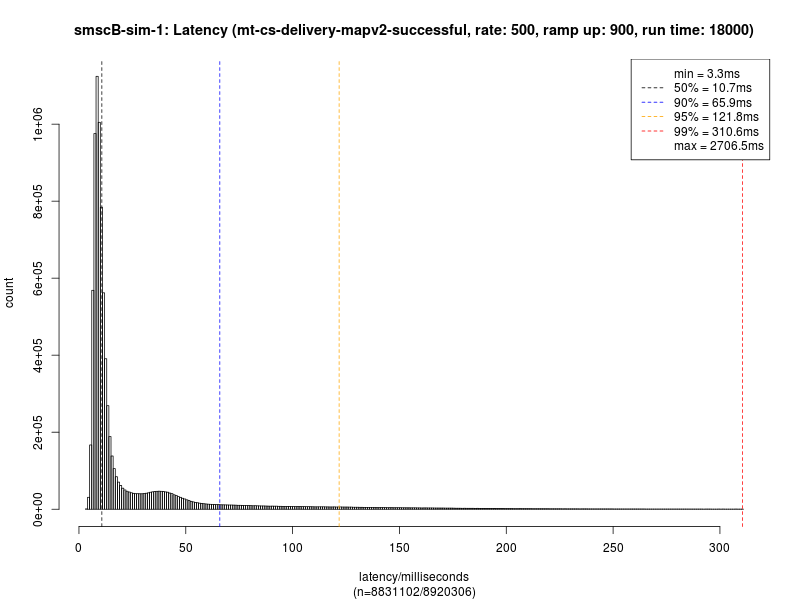

CS-Delivery

smscB sim 1 mt cs delivery mapv2 successful latency
